New Job Site Measuring System (JSMEA)

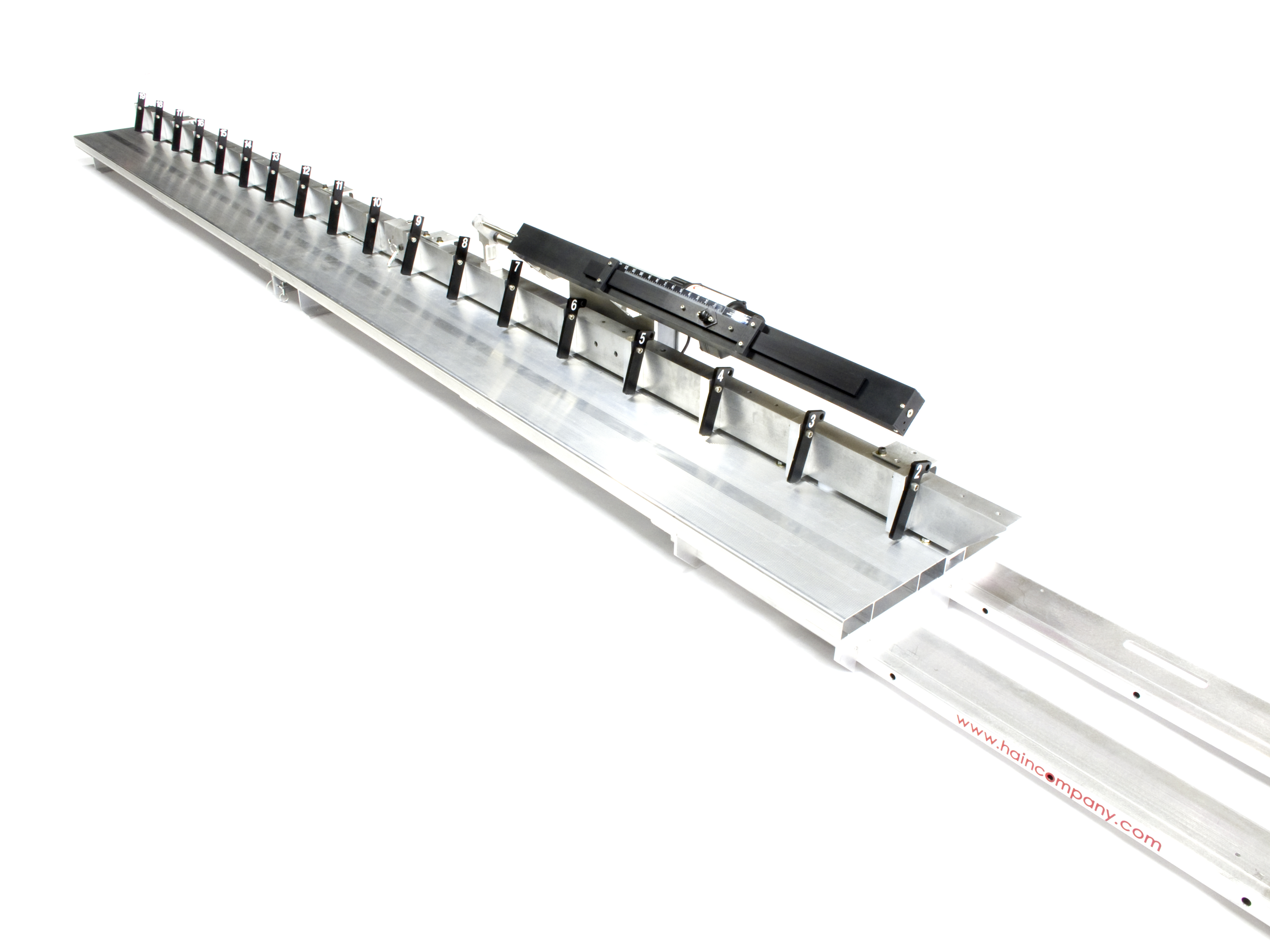

JSMEA If you're looking for the fastest, most consistent way to measure and cut your product, then the Hain Measuring System is your answer. The MEA changes from any length to any length instantly, up to 60 feet, without changing the operator's position on the line. It's also highly accurate (+/- .010) and quickly moves from one length to the next in seconds. The MEA is designed for quick and easy setup and is simple to use. Even a first time user will be productive with little or no training required. It can adapt to any saw and can be mounted to any surface so that you can integrate the MEA with your existing set up. The MEA is versatile allowing 'left' or 'right' handed operation and measurements in 'feet and inches' or 'inches' depending on your preference.

Specifications

Electrical Supply: 110 Volt A/C

Motor: 1/4 HP, 110 Volt A/C, Linear Actuator

Highly Accurate: +/- .010"

Stop Rail: 2 x 4 x 1/4" Aluminum Extrusion

Stops: Jig bored steel

Stop Blocks: Machined Billet Aluminum

Internal Components: Hardened, ground and polished steel and Billet aluminum

Dimensions: Length - 5 Feet (60") to 60 Feet (720"), Height - 12", Depth - 12"
