Automatic Vent Block Drill (VBD)

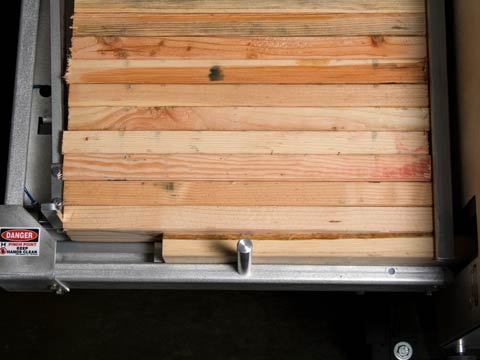

The Automatic Vent Block Drill is designed to make lumber, truss and wall panel manufacturing yards more efficient by easily converting scrap wood into useable vent (frieze) blocks. The operator stacks lumber in the magazine in varied quantities. While the machine continues to run, the operator can multitask doubling the production cycle by screening and drilling at the same time. It can drill 1, 2, 3, or 4 holes and you can infinitely adjust the block size in 15 seconds or less. The AVBD processes each job quickly and tests have shown that it will produce in excess of 360 vent blocks per hour. Operation is simple and even a first time user can begin drilling blocks in a matter of minutes. The machine is enclosed for safety, the back cover is easily removed for maintenance, and the hinged front cover allows easy access to the drills. The Hain Company uses the highest quality parts to build our products to ensure that each machine is built to last, that service is trouble free, and gives our customers high productivity for many years.

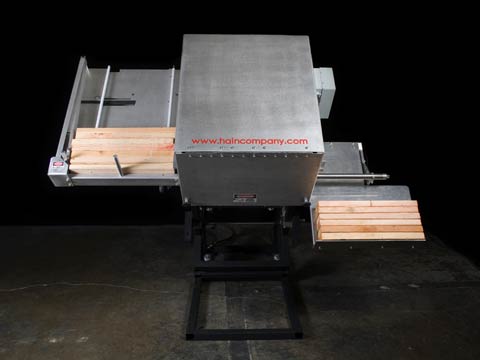

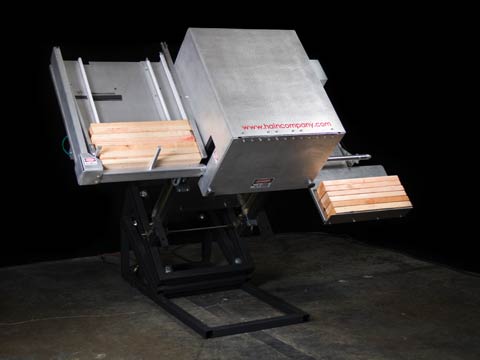

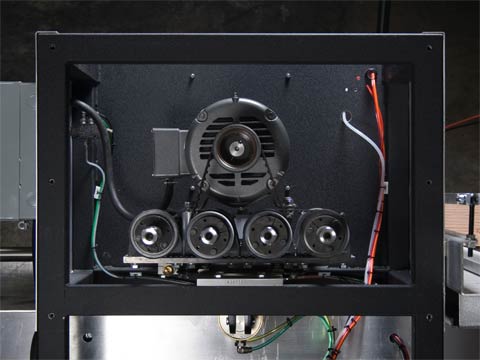

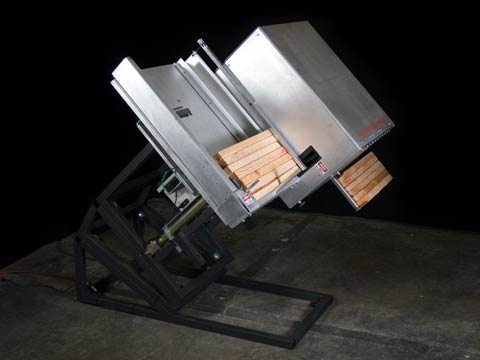

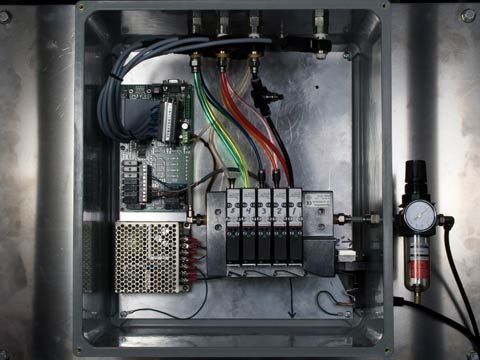

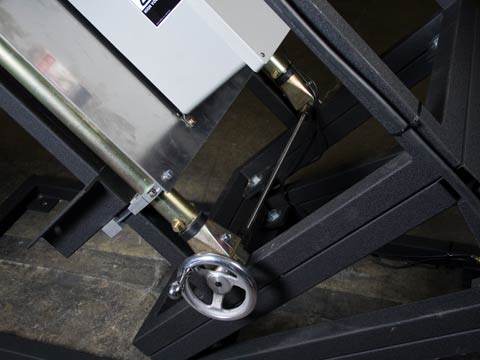

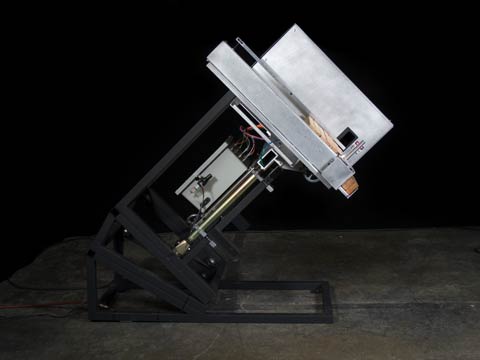

Photo Gallery

Specifications

Motor: Heavy Duty 5 HP - 3 phase - 220v or 440 v (Please specify when ordering)

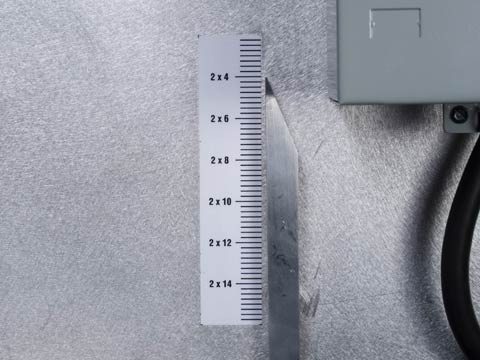

Block Sizes: 2 x 4 through 2 x 12 on center 2 x 14 and larger off center

Air Supply: 100 psi

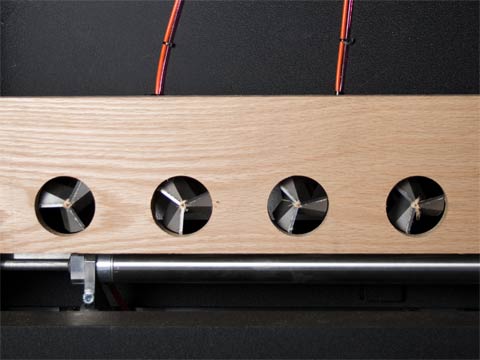

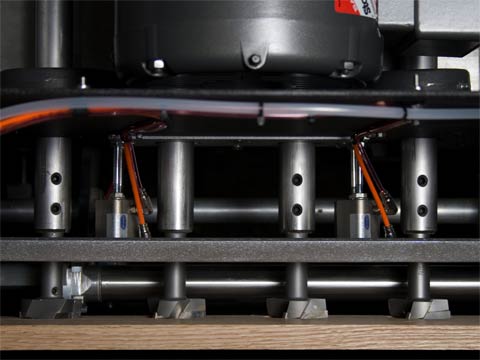

Drills: 3-wing Carbide Tipped

Spindles: Alloy Steel - Double ended

Frame: 2" Steel With Powder Coat Finish

Covers: 10 Gauge (1/8" Thick) Aluminum

Dimensions: Height - 60 inches, Width - 60 inches, Depth - 60 inches

Shipping weight: 850 lbs. - (Including crate)

Video

Manual

PDF manual for the Automatic Vent Block Drill
