Table Measuring System (TMEA)

Do you cut crown molding?

Have you been looking for an integrated digital board measuring system that is easy to setup and use? Then the Hain Company's Table Measuring System (TMEA) is your answer.

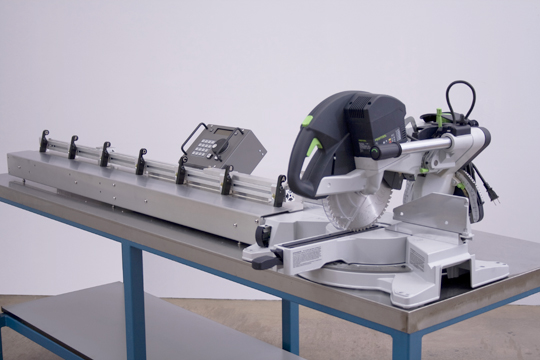

Fmea Cover Once ready the TMEA changes from one selected board cut length to another in seconds all while maintaining accuracy. It is available in 6, 12, and 18 foot versions and can be easily configured to measure in Feet & Inches, Inches, Metric or Decimal. First time users are highly productive in minutes with very little training. The TMEA can utilize your existing chop-saw or any popular brand available on the market. It bolts up permanently in place onto your bench top within minutes creating a precision random length cutting system that can instantly triple your production while enhancing the quality of the finish carpentry work you perform.

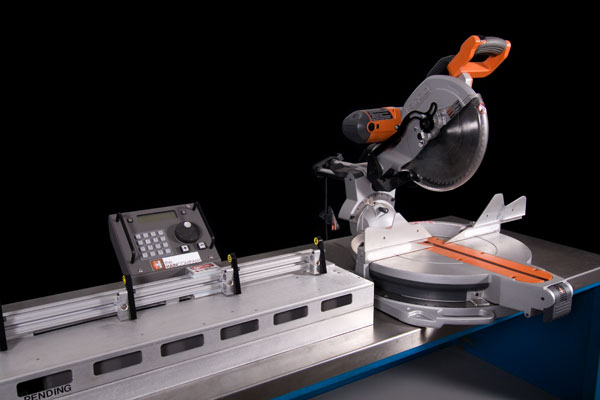

The TMEA User Interface is very simple and easy to use with a large character digital Liquid Crystal Display (LCD), numeric keypad, rotary dial, function buttons and LED indicators. Computer skills are not required to operate the TMEA. The User Interface is located to the left of the chop-saw within easy reach of its operating position which eliminates unnecessary and time consuming operator movements. The operator simply enters the whole Inch value (or Feet-Inches or Centimeters) into the keypad, sets the sixteenth fractions using the rotary dial (or Millimeters), then if needed use the function buttons to add or subtract a 1/32 Inch. The TMEA automatically controls and advances the measuring stops to the length entered by the operator and the LED lights indicating the cut is ready to be made. The operator slides the material down to the stop listed on the User Interface LCD and makes the cut with the chop-saw. The entire process takes only seconds providing a highly productive labor saving integrated system.

The TMEA is for non-portable applications but the Hain Company offers the Folding Measuring System (FMEA). The FMEA is a Portible version of the Table measuring system. It utilizes the same User interface and measuring stops as the TMEA but includes the portability, fold-up and chop-saw mounting features thereby providing an economical measuring system for portable applications. The FMEA is also available in 6, and 12 foot version.

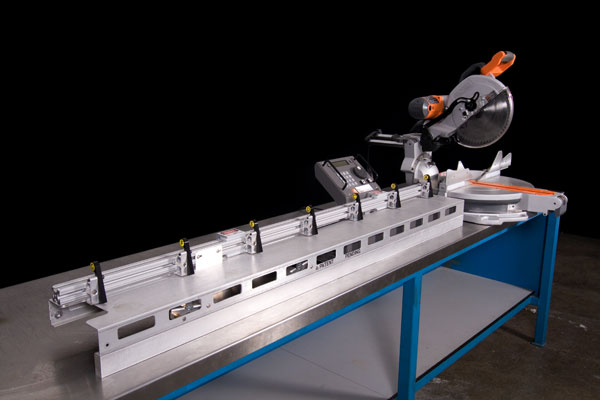

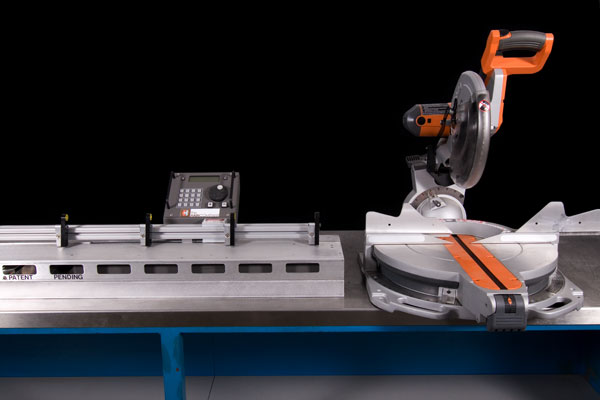

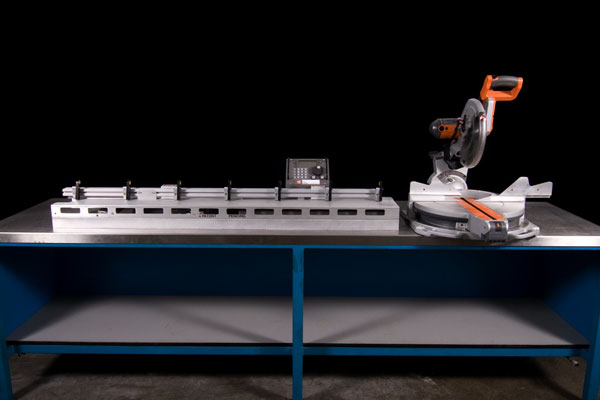

Photo Gallery

FMEA 11 FMEA 12 FMEA 17 FMEA 18 FMEA 19 FMEA 20 FMEA 21

Specifications

FMEA/TMEA Input Power Supply:
Voltage: 90-240 VAC
Frequency: 50-60 Hz
Current: 2.4 Amp

Unit Size: FMEA (12' model):
Folded for transport (maximum envelope): 24" wide x 19" tall x 93" long.
Set-up for Use (maximum envelope): 24" wide x 42" tall x 163" long.
Weight (excluding chop-saw): 85lbs.

Unit Size: TMEA (12' model):
Set-up for Use (maximum envelope): 15" wide x 11" tall x 139" long.
Weight (excluding chop-saw): 72lbs.
